Disbo Extra Straight

The Best Design In The Market

1. Where safety meets design
» The new electrical distribution board Disbo Extra Straight™ consists of a range of metallic
enclosures with renewed design and still more safety. Disbo Extra Straight™ is intergrated better still into buildings, whether in housing or commercial building.
» With a step ahead, Schneider Electric innovates in all aspects of the product in terms of design, safety and installation.

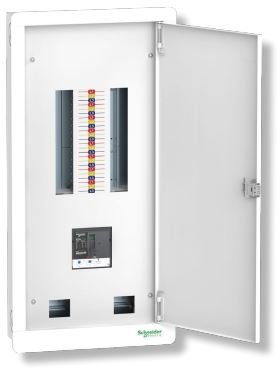

» Disbo Extra Straight™ can easily be recognised with its unique and attractive front door shape,
available in more than1 8 colors.
» Disbo Extra Straight™ provides optimum protection for both installers and end-user:
– Equipped with completely insulated busbar, direct contact with live parts is prevented
– Type test performed by ASTA laboratory (UK) and Bureau Veritas (France) certify that Disbo
Extra Straight™ complies with IEC-60 439-3 standards.
» Thanks to its clever cartonbox, including cement spill protection and repacking function, Disbo
Extra Straight™ is easier to install.

Disbo Extra Straight

2. A comprehensive system for quality and peace of mind

» Disbo Extra Straight™ is a durable product manufactured by Schneider Electric, the world leader in power distribution.

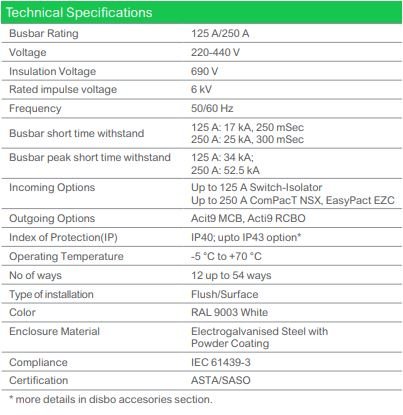

» Disbo Extra Straight™ enclosure range is adapted to a large variety
of requirements:
– safe and elegant door lock
– f l u s h o r s u r f a c e m o u n t e d
– 3 phases
– from 12 to 54 ways
– current rating u p t o 2 5 0 A
– all Schneider Electric protective devices
– wide choice of options and accesories
» Disbo Extra Straight™ is specifically designed to accommodate
Schneider Electric devices for protection of people and equipment,
through its large choice of incomers (switch disconnector, miniature
circuit breaker (multi 9 range).
» You will certainly find the solution to your needs withDisbo Extra
Straight™.
Disbo Extra Straight™

Disbo Extra Straight

3. Innovate Design

Creativity Architecture.

The original “made in France” design of Disbo Extra Straight™ follows the latest trends in aesthetics.

Elegance

Whatever the installation sets out to meet, Disbo Extra Straight™ responds in the most effecient and elegant way.

Distinction

With its unique rounded door and attractive smooth surfaces, Disbo Extra Straight™ encriches your interior with a simple and original touch of distinction.

Colorful

Thanks to more than 20 modern and sober optional colors, personalisation takes new meaning with Disbo Extra.

Optimum Safety

For both Installer and End User

The guarantee of complete safety for people.

» Disbo Extra Straigh™ is fully isolated. Equipped with a completely Insulated busbar and shrouded incomer neutral, hence direct contact to live parts is impossible.

» Disbo Extra Straigh™ is a tamperproof equipment: thanks to
screws hidden under the cover, access to internal live parts is
prevented when door is locked.

» Padlock facilities in all incoming and outgoing devices allow safe maintenance.

Type tested certification for performance you can trust

Disbo Extra Straight™ is an innovative Fully Type Tested Panel
from 2 prestigious third-party labs: ASTA(British) and Bureau
Veritas(French). It compiles with the highest standards for
personnel protection (IEC 60439-3).

For more information about type tested panels, kindly ask for Schneider Electric’s Awareness Brochure & Type Tested Switchboards brochure.

SASO Quality Mark

Disbo Extra Straight has acquired the prestigious of Saudi
Standardization Organization(SASO) to comply with up-to-date
standards of the Saudi Market.

Ergonomics and accessibility

Disbo Extra Straight™ architecture ensures extremely simple
installation and connection for the installer. Central holeinthe
box make easier the installation in the wall. Enough space is provided to give a good visibility and make cable insertion easy and effective. Neutral bar is available in both sides. Enclosure is designed for convinient and fast wall mounting, with its numerous possibilities for cable inlet and easy knock-out. Clear labels make easier identification of outgoing circuit breakers, earth and neutral.

Ease of implementation

Disbo Extra Straight™ is easy to carry and store. Thanks to the
unique design of cartonbox.
The carton pad provided can be used both as a template and ac cement spill protection.
During enclosure installation, the front door and the pan assembly can be repacked and protected inside the cartoon box.

The most optimum offer at the right price

Despite having the highest specifications and the premium quality, the value for money is highly taken into consideration.
Note: for specifications please ask for our Disbo Extra straight brochure.

Schneider Electrical Global

* With €18.3 billion sales in 2008
* With 32% of sales in new economies
€ With 114,000 e m p l o y e e s in m o r e t h a n 100 countries
With 6 2 0 marketing facilities
With 13,000 sales outlets at your dour steps
• More than 200 manufacturing sites close to customers
With 330 rank in fortune 500 ranking
* With 5% revenue devoted to R&D

Schneider Electric in KSA

– Over 500 employees a team of passionate, open, straightforward and effective people.
– 2 Manufacturing facilities a fully qualified team of assemblers configure as per your specification.
– 9 Salesbranches kingdom wide local presence to support you.
– 6 Official Distributors true strategic allies for more customer support.
– 22 Partner Panel Builders excellent partnership for more customer support.
– 12 Alliance System Integrators latest technical know-how to meet challenges for automation business.
– 65 Sales outlets and showrooms extensive distribution and service network to support you.
– More than 8,000 customers listening the customers requirements and giving the tailor-made solutions.
– Customer Care Center all our expertise just a phone call away.
– Service Division offers a comprehensive range of services to enhance your performance.

A comprehensive solution Outgoing Miniature Circuit Breakers

Standard Protection

Protection of circuits against overload and short circuit currents. Complies with IEC 60947 and I E 60898 standards

Domae

Current rating from 6 to 40A Breaking Capacity at 220/380V:6kA Available in 1.2 and 3poles Recommended for housing and commercial applications

C60N - C60H - C60L

Current rating from 0.5 to 63A
Breaking Capacity at 220/380V C60N: 10kA, C6OH:15kA,C60L:25kA
Available in 1.2 and 3poles Recommended for housing and commercial applications

Full Protection

Protection of circuits against overload and short circuit currents. Complies with IEC 60947 and IEC 60898 standards

C60H - R C B O

Current rating from 6 to 45A Breaking Capacity at 220V:10kA Senstivity 30 or 100mA Automatic tripping in case of loss of neutral and inversion between phase and neutral in one pole
module of 18 mm width Recommended for humid and public areas

Incoming Devices

Switch Disconnectors

Control and isolation of electrical circuits. Comply with IEC 60947-1 and 60742-3 standards

Switches

Protection of circuits against overload and short-circuit currents Comply with IC 60947-1 and IEC 60947-2 standards

Moulded Case Circuit Brakers

Easypact – EZ100
Current rating from 40 to 100A
Breaking capacity at 380V: 18KA

Easypact - EZ250

Easypact – EZ100
Current rating from 40 to 100A
Breaking capacity at 380V: 18KA

Compact NSX (NSX100 - NSX160 - NSX250)

Current rating from 16A t o 250A,
Breaking capacity a t 380V: N S X 1 0 0 : 25KA – N S X 1 6 0 &
NSX250:36kA
Adjustable trip unit
Total discrimination as standard with downstream
circuit breakers.

Earth Leakage Protection

Protection of people and goods against fire and electrical shocks specially recommended for humid and public areas

Complies with IEC 61008 standard

Current rating from 40A to 125A
Sensitivity: 3 0 0 m A
Instantaneous trip release
Self supplied by distribution voltage, does not require any external source.
