Introduction
The PanelSeT CRN Steel Wall-Mounting Enclosure is
developed for indoor, non-clean industrial environments.
It has a wide range of sizes suitable for use in industrial
automation and control, electrical distribution, electronics,
and industrial networks.
Moreover, this range can be configured to meet
your specific requirements, supported by our
customization services.
PanelSeT CRN
Built to Last
• Industrial welding process
• Epoxy-polyester painting
• Molded polyurethane gasket
• Front folded gutter
These features help ensure quality as well as water and dust tightness
over time.
Enhanced Safety
For people:
• Two welded M6 x 15 earth studs welded to the back and one M6 x 15 stud on
the door
For your installation:
• Water and dust tightness IP66
• Mechanical protection IK10 to help protect your components from external impact
• Concealed hinges to help prevent removal of the door
Convenient
• Large embedded cable-entry plate with a neoprene gasket, flush with
the back of the enclosure
• Two fixing options: direct or using the outside brackets
Smart
Welded door reinforcement profile allowing the fixing of equipment in models
from 500 mm in height
Flexible
Optional version with glazed door including tempered glass, providing IK08
protection against water and dust ingress
Ready to Assemble
4 or 6 welded M8 x 15 back studs with 10-mm collar for direct installation
of mounting plate
Steel Wall-Mounted Enclosures
This range can be configured according to your needs 4 different services available:
Assemble to order
Mounting of standard accessories
Machining
Painting
Steel Floor-Standing Enclosures
Introduction
The PanelSeT SM is a range of enclosures ideal
for industrial automation and control appliances,
and for machinery.
It offers a large portfolio of dimensions and delivery options.
Moreover, this range can be configured to meet
your specific requirements, supported by our
customization services

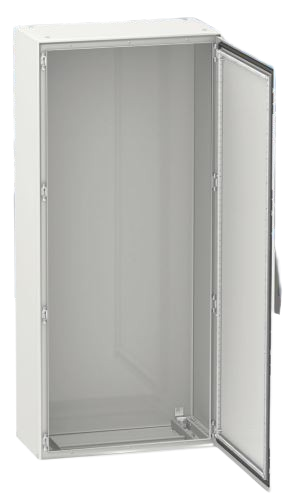

PanelSeT SM: Compact Enclosures
Robust
• Body made as a single piece with welded rear panel
• Front part forming a rigid frame with welded corners
Easy to Install
• Height-adjustable door rails suitable for cable fixing
• Optional adapter profiles can be added to provide the same
fixing points as the suitable enclosure PanelSeT SFN
Protection
• IP protection supported by the rigidity of the enclosure,
the expanded-polyurethane sealing gasket, and the final welding
• Double-door enclosures with inner lock on the left door
Comfort
• Sturdy handle design for easy activation of the locking system,
accommodating any insert shape and cylindrical combination key
• Easily interchangeable insert with one click
